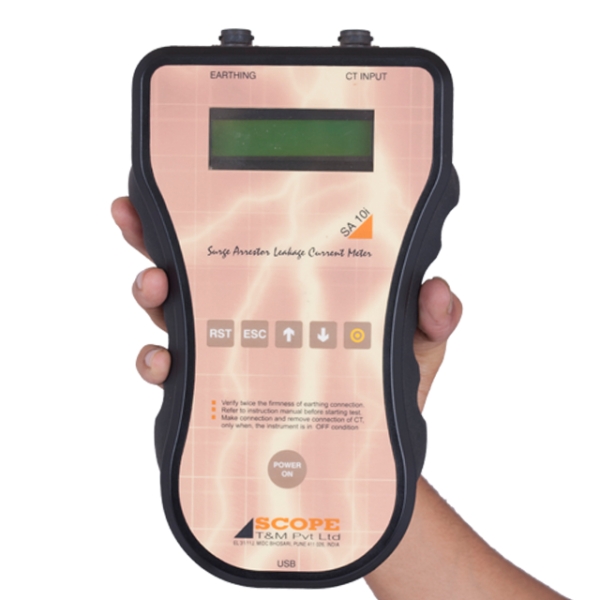

SA 30i and SA 10i the Leakage Current Analyser and Leakage Current Meter from SCOPE are two state of the art on-line test system for Residual Life Assessment of metal oxide (Zno) Surge Arresters. The instrument measures and directly displays the values of resistive and total leakage current. it is capable to work accurately and safely in swithchyard upto 765kV.

SA30i measures Third Harmonic Resistive leakage Current (THRC) with system harmonic compensation in accordance with IEC 60099-5 B2 (which is best recommended), whereas SA10i, a hand held Leakage Current Meter measures THRC without system harmonic compensation in accordance with IEC 60099-5 B1.

Features

  • Simple, lightweight, portable, feature-rich, affordable.
  • Measures 3rd harmonic resistive current with system harmonic compensation*, and the total leakage current.
  • In-built temperature measurement facility enables calculation of temperature compensated leakage currents.
  • Results are displayed on LCD, printed on thermal printer and can be stored in the in-built memory of the instrument. 1000 test records can be stored.
  • Built-in standard calibration source for self-calibration check facility.
  • USB communication port to transfer data to PC having Windows based data management software.
  • SA identity creation, Data management, Analysis and Trending through SAData software.
  • Facility for testing of GIS LAs available optionally thorugh Field PT input.
  • The instrument is supplied along with a low noise Clamp-on CT, Field Probe assembly for system harmonics compensation*, Test Leads suitable for EHV class LAs*, Thermal paper roll*, SAData software installation CD and a Calibration Certificate.

* - Features available only in SA30i.

Specifications

Parameter SA 30i SA 10i
 Total Leakage Current Range  Up to 10mA
 Field Probe Current Range  Up to 10mA
 Resolution  Up to 1mA  Not available
 Inputs  External Clamp-on CT, Field Probe, External PT (110V AC) - Optional External Clamp-on CT
Display 4 line x 20 character large backlit LCD 2 line x 16 character backlit LCD
Compensation Automatic for Noise, System Voltage, System Harmonic & Temperature Automatic for Noise, System Voltage & Temperature
 Temperature Sensor Inbuilt silicon thermometer Inbuilt silicon thermometer
Self-calibration Check Built-in source available No
PC Connectivity Yes
Memory 1000 results
Printer Inbuilt Thermal Printer Not available
Battery 11V / 2200mAh, Internal rechargeable Li-ion battery 7.4V / 1150mAh, Internal rechargeable Li-ion battery
Battery charging 100-270V AC, 50 / 60Hz ± 10%, 1 Phase 100-270V AC, 50 / 60Hz ± 10%, 1 Phase
Dimension 415 x 330 x 200mm 190 x 129 x 50mm
Instrument Weight 7.5 kg 1.5 kg
