MI20KVe

MI20KVe

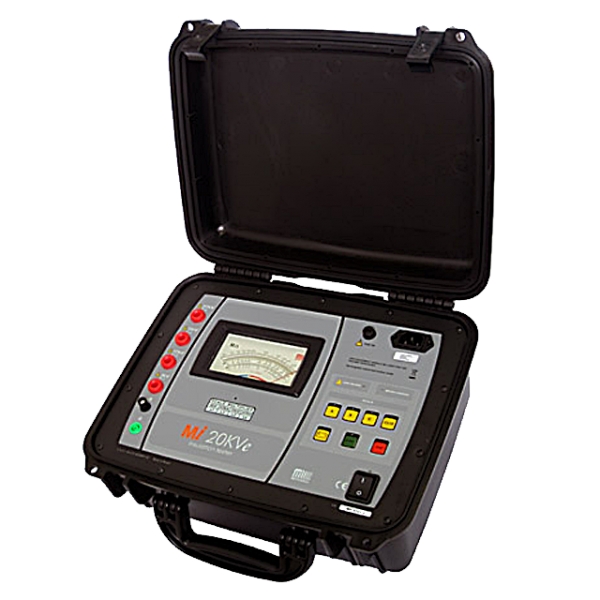

The MI-20KVe High-Voltage insulation tester is a truly portable device that allows the measurement of insulation resistances using test voltages up to 20 kV.

It employs a state-of-the-art technology for the safe measurements of insulation resistances up to 4,000,000 MΩ with four test voltages: 5 kV - 10 kV - 15 kV and 20 kV.

Analogue indicator, having a broad scale.

Due to its reduced size and weight, its power autonomy and mechanical strength, this insulation tester is suitable for working out in the field, under severe weather conditions. It is powered with a rechargeable battery, with a charger for 110 V/220 V. In order to protect the equipment, the cabinet is water and dust resistant. Protection grade is IP54, and the insulation tester is supplied with a complete kit of high voltage test leads.

Features

  • Insulation test up to: 4 TΩ
  • 4 Test voltages: 5 kV - 10 kV - 15 kV - 20 kV
  • Guard terminal
  • Rechargeable battery
  • Multiple scales for precision improvement
  • Portable, accurate & rugged
  • IP-54 Protection

Specifications

Specifications
Test voltages 5 kV - 10 kV - 15 kV - 20 kV.
Maximum resistance reading

1 TΩ @ 5 kV.

2 TΩ @ 10 kV.

3 TΩ @ 15 kV.

4 TΩ @ 20 kV.

Short circuit current 500 µA.
Test voltage accuracy ± 2% of nominal test voltages on R ≥ 10 GΩ.
Internal current limiting resistance

10 MΩ @ 5 kV.

20 MΩ @ 10 kV.

30 MΩ @ 15 kV.

40 MΩ @ 20 kV.

Insulation tester Accuracy Class 2 (±2 % of full scale deflection).
Analogue indicator  Up to 98 mm scale length, taut band, with mirror
