Cable Identification System

Cable Identification System

After excavation, sometimes it is confusing to identify the right cable from a bunch of cables. Cable Identification is very important for the safety of field personnel – Cutting a wrong cable can be fatal. So, we require a Cable Identification System to identify the wanted cable.

Cable Identification is the most critical and safety-related sequence during all the procedure of Cable Fault Location. The correct identification of a cable out of a bundle of cables, where most of them can be in service, has to be carried out not only carefully, but also by means of an instrument widely eliminating the possibility of human error or misinterpretation.

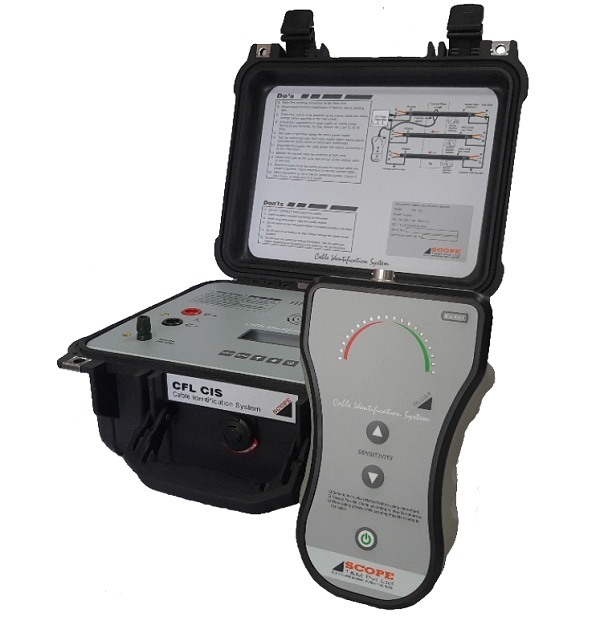

The Cable Identification System, CFL CIS from SCOPE is the ultimate solution for identifying wanted (dead) cable from a bunch of cables in a trench, pit or cable rack. The SCOPE’s Cable Identification System, CFL CIS is designed to fulfil these most important safety aspects

Features

  • Compact, Lightweight and Rugged
  • User Friendly LED Indication for Right & Wrong Cable Identification from multiple cables
  • Thin and Flexible Current Clamp for easy insertion between closely mounted Cables
  • 10 Stage amplifier setting for better signal identification
  • Transmitter operation through Mains as well as In-built rechargeable battery
  • Transmitter housed in IP67 class moulded case
  • Neck Belt arrangement for easy carrying of Receiver

Specifications

Parameters  CIS
Pulse Amplitude Selectable between 100A (55V) / 60A (36V)
Pulse Sequence 10 or 20 or 30 pulses/min, User configurable
Pulse Modulation  Alternative pulse at 1s and 2.5s
Pulse Width 72ms
Display 4 line x 20 characters backlit LCD
Power 90V to 265V AC, 50/60Hz or In-built 11.1V Lithium Ion Rechargeable battery
Battery Operating time 6 Hours Min.
Environmental  -20°C to +55°C, 95% RH (Non-Condensing)
Dimensions & Weight 339mm x 295mm x 152mm, 6 Kg approx



Parameters  CIS-R
Display Type LED Scale
Flexible Clamp 150mm Diameter
Sensitivity 100% at 31Ω loop resistance
Amplifier 10 stage gain setting
Power 11.1V Lithium-Ion Rechargeable Battery
Operating Time 8 Hours Min
Environmental  -20°C to +55°C, 95% RH (Non-Condensing)
Dimensions & Weight 210mm x 124mm x 51mm, 0.7 Kg approx
