SIM Filter

SIM Filter

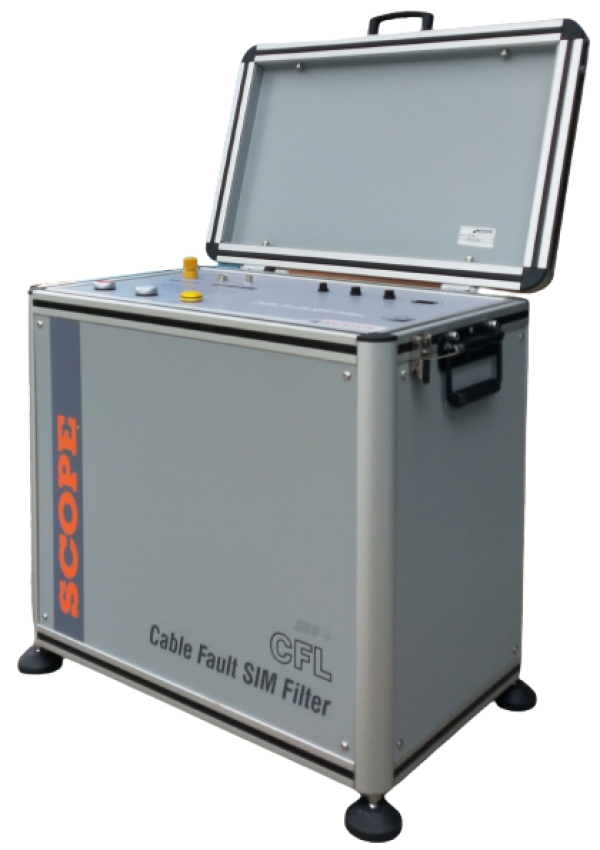

The CFL SIMF+, Cable Fault Secondary Impulse Filter from SCOPE is the ultimate solution for locating underground cable faults in minimum time. It uses advanced technology for fault distance measurement which helps even an unskilled operator to locate the fault accurately.

Cable Fault Secondary Impulse Filter CFL SIMF+ is mainly used for high resistance and flashing fault test for power cable with the voltage below 10kV, and for fault location with Secondary Impulse with the conjunction of Pre-locator and HV surge generator. Latest fault locating technique for high resistance and flashing faults is Secondary Impulse Method (SIM). This method offers highly reliable results for faults on any type of power cable. It converts the faults to low resistance nature by creating an arc across the fault.

It is a passive filter having its own output power source. It uses the energy of the surge generator to create an arc at the fault point. A high voltage switch incorporated in the output circuit facilitates selection of SIM or ICM mode.

Features

  • Compact, Lightweight and housed in rugged aluminum case
  • User friendly operation
  • Easy setup and intelligent protections make the high voltage testing safe & reliable
  • Automatic soft discharge upon shutdown
  • Arrangement for turning ON/OFF SIM Mode



Specifications

  • HV Input: up to  35 kV DC with Negative Polarity
  • Input Power Supply: 230V±10%, 50Hz AC Single Phase
  • Environment: -10˚C to 50˚C, 95% RH (Non-condensing)
  • Dimension: 490 x 370 x 510 mm
  • Weight: 32kg
