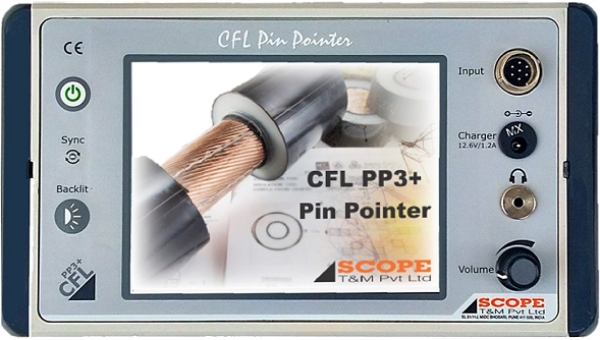

CFL PP3+

CFL PP3+

The new generation CFL PP3+ Cable Fault Pin Pointer cum route tracer from SCOPE is the ultimate solution for locating of underground cable faults in minimum time by tracing cable route. It uses an advanced technology which helps even an unskilled operator to locate the fault accurately.

For pinpointing it is used along-with CFL SG Series Surge Generators and for route tracing it is used along-with CFL AG Series Audio Frequency Generators. Advanced technology with features like time-lapse measurement, makes it a tool that can tackle complicated faults easily.

Features

  • Compact, Lightweight and Rugged
  • Operation via User Friendly 5.7” colour Touchscreen Display
  • Universal Receiver used for Route Tracing and Pinpointing
  • Backlit facility with intensity control for ease of viewing in direct sunlight
  • Simultaneous display of Magnetic and Acoustic waveforms
  • Time-lapse / delay measurement facility
  • Automatic Fault Point Indication using Coincidence Method
  • Noise suppression filters to eliminate external influences
  • Mute function for headphones to disable noise while moving
  • Route guidance (Compass) feature during Pinpointing
  • Detection of live loaded cable (50Hz frequency)
  • Specially designed lightweight, neck carrying case ensuring minimum strain to the operator
  • Inbuilt Rechargeable Battery
  • Water-resistant and dustproof design
  • Supplied in an IP67 Class Molded Case

Specifications

Parameters  CFL PP3+
Channels Acoustic and Magnetic (Dual Channel)
Operating Principle Coincidence Method
Gain Up to 120dB adjustable for Acoustic & Magnetic
Volume limitation warning 84dB
Headphone Jack  3.5mm
O/P impedance of headphone 8Ω to 72Ω (32Ω is recommended)
Acoustic Channel Bandwidth 70Hz to 3000Hz with automatic filtering
Magnetic Channel Bandwidth 120Hz to 20kHz Auto-tuned
Battery 11.1V Lithium-Ion Rechargeable
Charger Input 90V to 270V AC, 50/60 Hz, Single Phase
Operating Time 10 Hours Min (Approx)
Display  5.7'', 320 x 240 pixel, Colour, TFT Touch Screen
Environmental -20°C to 55°C, 95% RH (Non-Condensing)
Dimensions of Receiver 231mm x 90mm x 135mm
Weight of Receiver 1.4 kg
